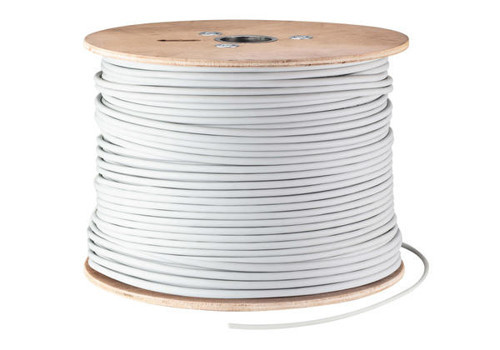

Aten 2L-29330 300 Mt CAT6A 23AWG U-FTP HDBase T Gri Data Kablosu

Aten 2L-29330 300 Mt CAT6A 23AWG U-FTP HDBase T Gri Data Kablosu Meets HDBaseT 3.0 standard for uncompressed multi-signal transmission up to 16 Gbit/s bandwidth, including True 4K video, audio, Ethernet, power, and controlThe length of a reel of 2L-29330 is 300 m – tailored to specific lengths up to 100 m based on practical usageResistant to electromagnetic interference (EMI) and radio frequency interference (RFI) brought by walkie-talkies or any other radio devices to prevent AV signal disturbanceConductor material: 23 AWG solid bare copperTested transmission up to 500 MHz, according to ISO 11801 class EA, ANSI/TIA-568.2-D, and IEC 60332-1 standardsOuter shielded material: AI Mylar tape and braidLow Smoke Zero Halogen (LSZH) copper cable – eco-friendly material design for better safetyCompatible with ATEN’s HDBaseT extenders, splitters, and matrix switches Cable TypeCat 6A U/FTPCable Length300m / 990ftConductorSize23AWGConstructionIndividual shielded pairMaterialSolid plain annealed bare copper wireNumber of Pairs4 twisted pairs, 2 single conductors pairedInsulationMaterialFoamed PE , 1.46 +/- 0.1mmColor codesTwisted pair color code:Light Blue / BlueLight Orange / OrangeLight Green / GreenLight Brown / BrownBinderMaterialPolyesterShieldMaterialA layer of aluminum-foil laminated tapeDrain WireConstruction26AWGJacketedMaterialLSZH (Low Smoke Zero Halogen)Diameter7.2+/-0.5 mmColorGrayElectricalDC Resistance9.38 Ω (max.) / 100m at 20 °CPropagation Delay535.6ns (max.) / 100m at 500MhzPropagation Delay Skew45ns Max./100mInsertion Loss45.3 dB (max.) / 100m at 500MhzImpedance100+/-15 ΩEnvironmentalTemperature (Operating / Storage)-20°C to 60°CPhysical PropertiesWeight17.00 kg ( 37.44 lb )Standard SupportANSI/TIA-568.2-DHDBaseT 3.0 Premium cable
