Amsamotion Amsamotıon Usb-ppı S7 200 Plc Kablosu S7-200 Serisi Programlama Step 7 Micro Win Endüstriyel Otomasyon

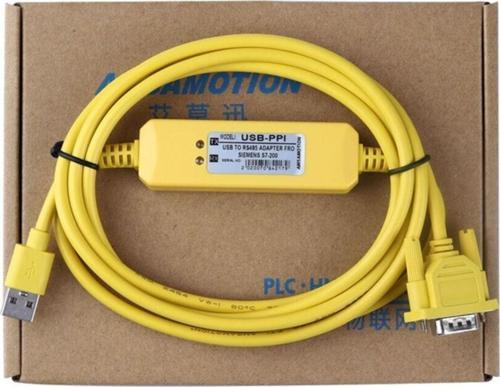

USB-PPI S7 200 PLC Kablo

Descriptions:

A direct replacement for USB version of S7-200 PLC programming cable PC/PPI. Contains all the necessary data conversion equipments to communicate between Siemens S7-200 series PLC and PC. USB on PC side and 9 pin Male DSub plug into the price, same a fraction of the cost for the industrial product you want. Only need you to communicate between PLC and PC. Professional made cable directly from industrial automation is guaranteed.

Features

• Support Windows 7/2000/Windows XP (WinNT4/95/98/Me/DOS NOT SUPPORTED).
• Smart LED indicator. Auto identification of optical isolation status.
• 50mA Power supply from USB port, not PLC
• Support STEP7 Micro/WIN and above
• Compatible with USB and
• Support Baud rate , , no
• Not supported Multi-Master and advanced PPI. ( Please check Multi-master version in our store.)

Usage:

USB device drivers should be installed before using USB/PPI+ programming completing Driver installation,the corresponding COM port for the USB/PPI+ programming cable will be displayed in the “Device Manager” of step next is just to choose this COM port in the programming software and other application software and keep other communication parameters as in the Default the following steps are exactly the same as in the traditional programming cables with RS232 are requested to indicate that "USB" option in the local communications interface setting which the software is not support to the programming cable.

If the COM port in the programming software with "*" symbols,such as "*COM3",it’s shown that the COM port have the software and plug a USB plug or re-install the USB driver.

This cable do not support the Kbps baud rate as the same with the Siemens PC/PPI programming cable which with the RS232 interfaces.

Please note that Siemens COM port in programming software is up to support the option to the ports more than COM8 are able to choose but in fact can not be used!

Long-distance communications:

The largest communications range between the USB/PPI+ and PLC are up to 2 kilometers (9600 bps),when external plus terminals 120 ohm resistance is needed to connect between the pin3 and pin8 of the RS485 ports (DB9 Male) to eliminate signal reflection, but also a 24 VDC power between the pin2 and a PFB-G Bus Isolators is needed to install at the end of mm2 or more unshielded twisted pair lines are used for the distance is Over 2,000m,a RS485 repeaters can be installed for extending the distance.

Driver: Google üzerinden dosyasını bulup bilgisayarınıza kurunuz.

Paket içeriği :

• 1 adet USB-PPI Adaptör
