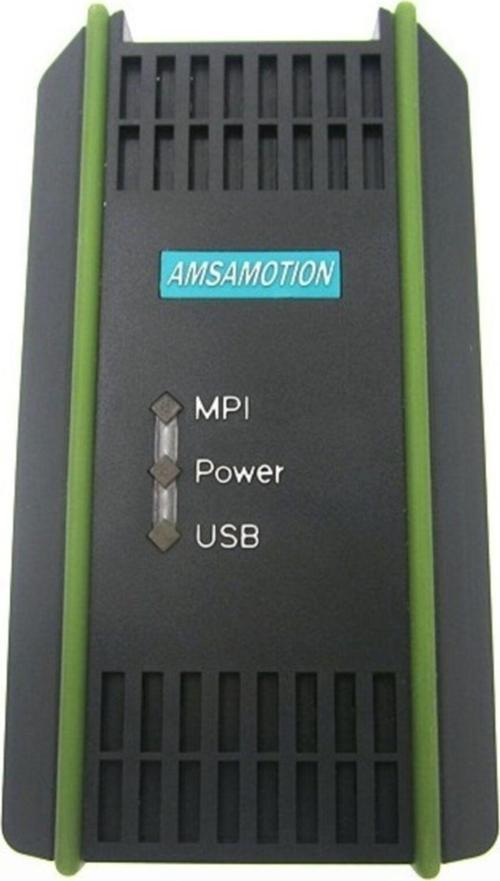

Amsamotion Amsamotıon 6gk1 571-0ba00-0aa Usb To Mpı Adapter

6GK1 571-0BA00-0AA

SIEMENS USB to MPI / DP PPI PC Adapter S7 200 / 300 / 400 PLC Programlayıcı

This PC Adapter USB to USB to MPI and PPI protocol adapter, support S7-300/400 PLC MPI/DP, or S7-200 PLC PPI communication.

Features:

• Support S7 200 / 300 / 400 PLC
• Support DP master-slave mixed network by EM277 for Simatic S7-200 programming and downloading.
• Support 840D CNC system programming
• Use original Siemens drive with USB interface directly, no need to creat COM. (STEP7 no need to install driver)
• Supports full baud rate 9600, 19200, , , , 500K, kps, MPI port baud rate auto adaptable
• Support siemens touch panel with MPI/DP port, such as Mobile Panel 170,Mobile Panel 177,TP170A,TP177A,TP170B,OP177B,OP277,OP270,TP177B,MP177,MP270,MP277,MP370,MP377,TP270.
• Support windows 2000/XP/Vista/Windows 7 32/64bit/Windows 10 32/64bit system.
• The signal part is high-speed optical coupling isolated like the original.
• The selection of PTC resettable fuse which can well protect internal circuitry under overvoltage, overcurrent, short circuit conditions.
• The housing has a soft protection, anti-pressure, drop.

Garanti: Yarı mamul ürünlerin garantisi bulunmamaktadır.

Paket içeriği :

• 1 Adet MPI / DP / PPI PC Adapter 6GK1 571-0BA00-0AA
• 1 Adet USB Kablo
• 1 Adet DB9 Bağlantı Kablosu
