Alkatronik Yağmur Algılama Sensör Modülü Arduino Raindrops Su Algılama

Yağmur Sensör Modülü

Feature:

• Working Voltage: V- 5V
• The sensor USES the high quality FR - 04 double material, large area of x CM, treatment of nickel plating and surface, have fight oxidation, electrical conductivity, and life has more superior performance
• The LM393, use of wide voltage comparator
• The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 mA.
• With potentiometer sensitivity adjustment
• Has a fixed bolt hole, convenient installation
• Weight: 30 gr

Function:

• Connected to 5 v power supply, power indicator, no water droplets on induction plate, the DO output high level, switch indicator light out, drop a drop of water on, the DO output for the low level, the switch light is lit,Brush away the water droplets, again to return to, the output high level
• AO analog output, which can be connected to the microcontroller AD mouth detection drops of rainfall in the above size
• DO TTL digital output also can connect to the single chip microcomputer detect whether there is rain

Connection mode

• VCC: Positive (3-5 v)
• GND: Connect power anode
• DO: TTL switch signal output
• AO: Analog signal output

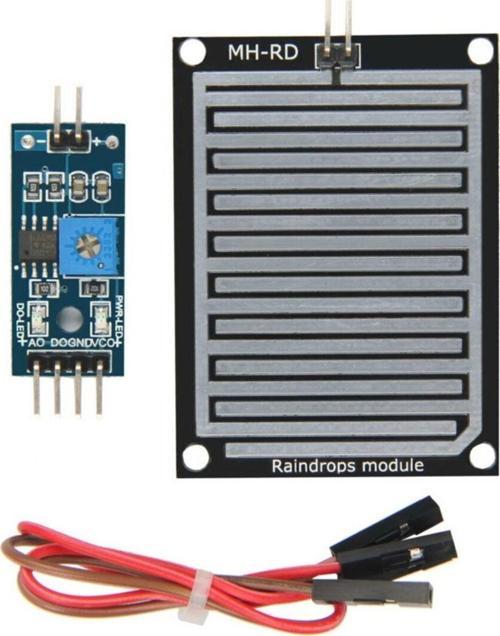

Paket İçeriği :

• 1 Adet Yağmur Sensör Modülü
• 1 Adet Kontrol Kartı
• 2 Adet 20cm Dupont Kablo
