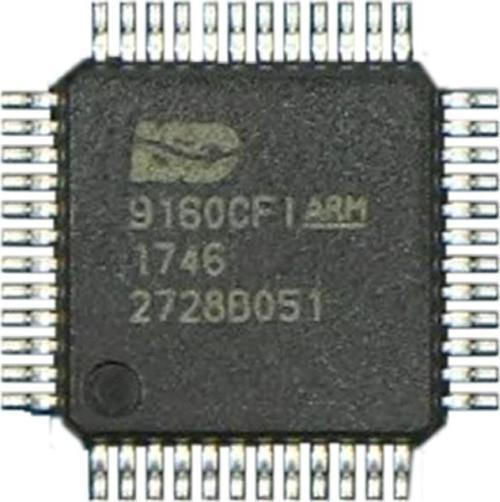

Alkatronik Nuvoton Isd9160cfı Arm Cortex-m0 Microcontroller 50mhz Cpu 145kb Flash I2c Irda Lın Spı Uart Usart

.

Specifications:

• Nuvoton Technology Corporation
• Base Product Number ISD9160
• Voltage - Supply: DC 2.5V / 5.5V
• Core Processor: ARM® Cortex®-M0
• Core runs up to 50MHz.
• One 24-bit System tick timer
• Program Memory Flash: 145kB
• RAM Size:12K x 8
• Interface: I2C, IrDA, LIN, SPI, UART/USART
• Sigma Delta ADC with configurable decimation filter and 16 bit output.
• 92dB Signal-to-Noise (SNR) performance.
• Programmable gain amplifier with 32 steps from -12 to 35.25dB in 0.75dB steps.
• Boost gain stage of 26dB, giving maximum total gain of 61dB.
• Input selectable from dedicated MIC pins or analog enabled GPIO.
• Direct connection of speaker
• 1W drive capability into 8? load.
• Two timers with 8-bit pre-scaler and 24-bit resolution.
• Internal low power 16KHz oscillator.
• Built-in trimmable oscillator with range of 16-50MHz
• External 32kHz crystal input for RTC function and low power system operation.
• Factory trimmed within 1% to settings of 49.152MHz and 32.768MHz.
• Number of I/O: 8
• Serial Wire Debug (SWD) supports
• Support In-system program (ISP)
• In-circuit program (ICP)
• Applications: Audio Record/Playback
• Operating Temperature: -40C / 85C
• Mounting Type: Surface Mount
• Package / Case: 48-LQFP (7x7)

Paket İçeriği:

• 1 Adet ISD9160CFI
