Alkatronik Lcd Backlight Boost Modül 12v-24v To 75v Voltaj Yükseltici

LCD Backlight Boost Modül 12V-24V to 75V Voltaj Yükseltici

12V - 24V giriş voltajını 75V seviyesine yükseltir. 14-37 inch LCD TV lerin backlight ( Arka ışık) led lerinin sürülmesi için kullanılır.

Limit parameters:

• When to 24V input: Vout = 75V Iout= 720mA maximum or 60W
• When to 12V input: Vout = 75V Iout = 400mA maximum or 30W

Description:

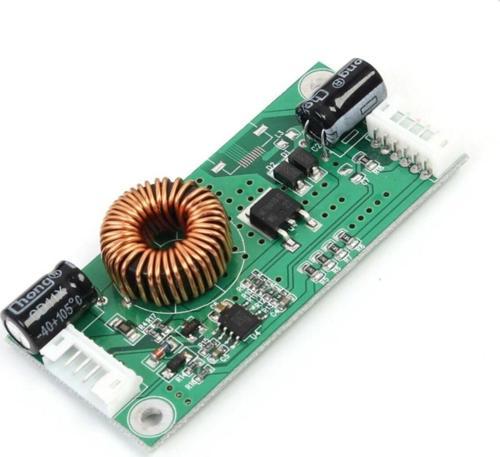

• 14-37 inch LED Backlight Lamp Driver Board Constant current board
• BOOST structure,Conversion efficiency reached more than 92%
• Low heat of the Device, stability,have a longer service life
• The PCB is small,Slim design,Current control error within ± 5%
• This product is constant current board, voltage is automatically adapted
• PCB size: about * "* "
• You can use the 12V power supply to reduce the system cost.

Specifications:

• Common Electronic symbolic code of Backlight:
• VCC: The positive of voltage supply, Circuit supply voltage (voltage is usually 12V or 24V)
• ON/OFF,ON,EN,ON_BL: Switch signal pin
• PWM,PDIM,VDAJ,BL-PWM: Brightness adjusting pin
• GND: Ground (negative electrode)
• LED+: the positive electrode of Light emitting diode (lamp)
• LED-: the negative electrode of Light emitting diode (lamp)
• The temperature rise is controlled at about 25degrees (Temperature rise = device surface temperature - ambient temperature)

Warm Tip

Limit parameter refers to the the maximum capacity when product in the application In fact,please under the limit parameters to ensure product reliability when using.

Note: Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.

Paket İçeriği

• 1 Adet LCD Backlight Boost Modül 12-24V to 75V

Garanti: Ürün 6 ay distribütör garantilidir. Kullanıcı hataları ve elektriksel arızalar garanti kapsamında değildir.
