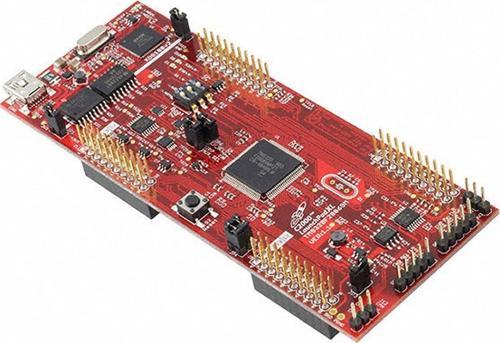

LAUNCHXL-F28069M TMS320F28069M LaunchPad

Description

LAUNCHXL-F28069M is a low cost evaluation and development tool for the Piccolo F2806x series as well as the InstaSPIN-FOC and InstaSPIN-MOTION enabled Piccolo F2806x series in the TI MCU LaunchPad ecosystem which is compatible with various plug-on BoosterPacks. This extended version of the LaunchPad supports the connection of two BoosterPacks. The LaunchPad provides a standardized and easy to use platform to use while developing your next application.

Features

• USB connected isolated XDS100v2 JTAG debug probe for real-time debug and flash programming
• 4x 20-pin headers/connectors
• Programmable buttons and LEDs
• TMS320F28069M: 90 MHz C28x CPU, 256 KB Flash, InstaSPIN-FOC and InstaSPIN-MOTION enabled, 12-bit ADC, CAN, 2x encoder interface (eQEP), UART, SPI, and more
• Supports two BoosterPacks
• Two encoder interface connectors
• Isolated CAN transceiver connector

Software features

• Free download of Code Composer Studio IDE
• Free download of MotorWare for InstaSPIN-FOC and InstaSPIN-MOTION example projects
• Free download of controlSUITE [and C2000Ware] for device drivers and example projects
• MathWorks Embedded Target Support
• Training video: two motors using LAUNCHXL-F28069M and two BOOSTXL-DRV8301
• solidThinking Embed Support
• Training Video: PMSM control series, including InstaSPIN-FOC
• Powersim PSIM Support
• InstaSPIN Processor-in-the-Loop (PIL) and code generation feature

Recommended BoosterPacks

• BOOSTXL-DRV8301
• BOOSTXL-DRV8305EVM
• BOOSTXL-BUCKCONV
• TI BoosterPack Checker for an interactive list of compatible BoosterPacks

Get started

• For InstaSPIN
• Download and install MotorWare.
• Run
• Browse resources and read Readme First for F28069M LaunchPad and any BoosterPack.
• Follow Training à InstaSPIN Projects and Labs User’s Guide.
• Install free GUI for instrumenting MotorWare projects.
• Watch 6 part training series or search for other training
• Ask questions on the TI C2000 InstaSPIN e2e forum.
• For non-InstaSPIN
• Install Code Composer Studio IDE and controlSUITE.
• Connect the LaunchPad using the included mini-USB cable to a computer.
• Open a serial terminal program of your choice (Putty, HyperTerm, etc.) and configure it to access the LaunchPad virtual COM port with 115200 Baud, 8-bit data, No parity, and single stop Bit. The COM port number can be found by opening your computer’s Device Manager.
• Ensure that the XDS200v2’s second port is a serial port. Refer to the XDS100 Wiki for the configuration details.
• When connected to your computer, the LaunchPad will power up and flash the red and blue LEDs for approximately 3 seconds. After the LEDs complete flashing, the LaunchPad will enter a temperature measurement mode.
• On startup, a reference temperature is recorded and stored. At one second intervals the temperature is sampled and compared with the reference temperature.
• If the temperature has increased, the red LED (D9) will light and will increase in intensity for each degree above the reference the temperature is.
• Conversely, if the temperature has decreased, the blue LED (D10) will light, and will increase in intensity for each degree below the reference the temperature is.
• The serial terminal will display the latest temperature reading.
• Build and load other examples in controlSUITE.
• Ask questions on the TI C2000 e2e forum.

What's Included

• Piccolo F28069M Launchpad
• Mini USB Cable
• Quick Start Guide
