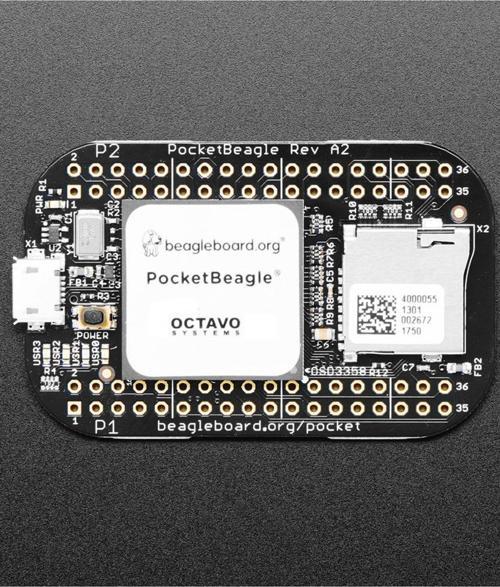

GHI Electronics Pocket Beagle SC-569

OSD3358 1-GHz ARM Cortex-A8 CPU 512MB DDR3 RAM 2x 200-MHz PRUs ARM Cortex-M3 3D Accelerator

PocketBeagle is an ultra-tiny-yet-complete open-source USB-key-fob computer. PocketBeagle features an incredible low cost, slick design and simple usage, making PocketBeagle the ideal development board for beginners and professionals alike.

Processor: Octavo Systems OSD3358 1GHz ARM® Cortex-A8

• 512MB DDR3 RAM integrated
• Integrated power management
• 2×32-bit 200-MHz programmable real-time units (PRUs)
• ARM Cortex-M3

Summary of Key Features

• Low cost Linux computer with tremendous expansibility
• Opportunity to learn many programming aspects from educators on-line
• Openness and flexibility tear-down limits on your imagination

Summary of Technical Specifications

• Based on new Octavo Systems OSD3358-SM 21mm x 21mm system-in-package that includes 512MB DDR3 RAM, 1-GHz ARM Cortex-A8 CPU, 2x 200-MHz PRUs, ARM Cortex-M3, 3D accelerator, power/battery management and EEPROM
• 72 expansion pin headers with power and battery I/Os, high-speed USB, 8 analog inputs, 44 digital I/Os and numerous digital interface peripherals
• microUSB host/client and microSD connectors

Want a powerful 1GHz AM3358 powered Linux single board that's ultra-tiny and open-source? PocketBeagle offers a wealth of computer power in a small footprint (pawprint?). This board is just like the BeagleBone Black but small enough to fit in your wallet. It has a fully-integrated chip that combines the processor and RAM all on one chip, so it's super small. Despite the compact shape, there are 72 total breakout pads, a microSD card slot for your filesystem and OS, and a native USB connection

Compared to other single board Linux computers, what differentiates the BeagleBone is that it has multiple I2C, SPI and UART peripherals (many boards only have one of each), built in hardware PWMs, analog inputs, and two separate 200MHz microcontroller system called the PRU that can handle real-time tasks like displaying to RGB matrix displays or NeoPixels

It's not too much larger than our Feathers, but comes with 72 expansion pin headers, high-speed USB, 8 analog pins, 44 digital I/Os, and plenty of digital interface peripherals.

You will need a USB host connection by wiring a USB A socket to the broken out USB host connections labeled VI, D+, D-, ID and GND. Then plug in any USB Ethernet, Bluetooth, and Wi-Fi device with available Linux drivers.

You will need to also pick up an SD card, at least 4GB in size, to burn on the Debian operating system - there's no built-in storage.

TECHNICAL DETAILS

• Processor: Octavo Systems OSD3358 1GHz ARM® Cortex-A8
• 512MB DDR3 RAM integrated
• Integrated power management
• 2×32-bit 200-MHz programmable real-time units (PRUs)
• ARM Cortex-M3
• Key Features
• Low cost Linux computer with a lot of GPIO
• Opportunity to learn many programming aspects from educators on-line
• Openness and flexibility tear-down limits on your imagination
• Technical Specifications
• Based on new Octavo Systems OSD3358-SM 21mm x 21mm system-in-package that includes 512MB DDR3 RAM, 1-GHz ARM Cortex-A8 CPU, 2x 200-MHz PRUs, ARM Cortex-M3, 3D accelerator, power/battery management and EEPROM
• 72 expansion pin headers with power and battery I/Os, high-speed USB, 8 analog inputs, 44 digital I/Os and numerous digital interface peripherals
• microUSB host/client and microSD connectors
• Product Dimensions: 55.0mm x 35.0mm x 5.0mm / 2.2" x 1.4" x 0.2"
• Product Weight: 11gr

Paket İçeriği

• 1 Adet Pocket Beagle SC-569
