Alkatronik 0.96 Inch Beyaz Oled Lcd Modül 128x64 Pixel Iıc I2c Seri 0.96” Ekran Gösterge Ssd1306 3.3v 5v Matrix

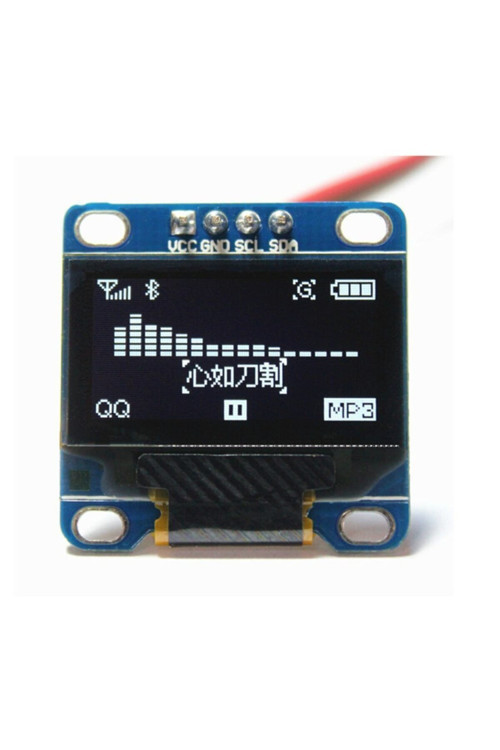

0.96" I2C 128X64 BEYAZ OLED LCD The 0.96" OLED displays are perfect when you need an ultra-small display. It is an OLED monochrome 128×64 dot matrix display module with I2C Interface. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. The driver chip SSD1306, communicates via I2C only. it compatible with any 3.3v-5V microcontroller, such as the Arduino It's a 0.96" 128X64 OLED, I2C (or IIC) interface, with SSD1306 driver, 3.3/5V compatible. There are 4 pin on the OLED module, VCC, GND, SCL and SDA. Connect to Arduino as
VCC - 5V on Arduino Uno
GND - GND on Arduino Uno
SCL - A5 on Arduino Uno
SDA - A4 on Arduino Uno .
Features
Interface
IIC
Display color
White
Voltage
3V ~ 5V DC
Driver IC
SSD1306
High resolution
128 * 64
Viewing angle
> 160 degree
Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption
full screen lit 0.08W
Working Temperature
-30~70 degree
Module Size
27.0MM * 27.0MM * 4.1MM
Paket içeriği
• 1 Adet 0.96" I2C OLED 128x64 LCD ( Beyaz )
