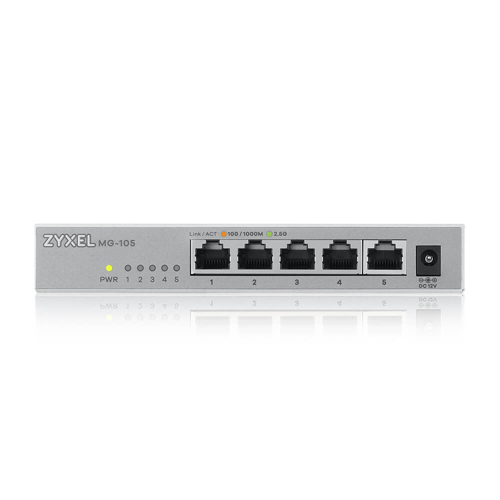

Zyxel MG-105, 5 Port, GigaBit, Metal Kasa, Yönetilemez, Masaüstü Switch

Switch housing

• Metal

Interface

• MG-105:Five RJ-45 100/1000/2500 Mbps Ethernet ports with auto MDI/MDIX support
• MG-108:Eight RJ-45 100/1000/2500 Mbps Ethernet ports with auto MDI/MDIX support

LED Indicator

• PWR: Power
• Per port: Link/Activity
  • Amber: 100/1000 Mbps
  • Green: 2.5 Gbps
• Power Supply
  • AC-to-DC external power adapter
  • Input: 100-240 V AC, 50/60 Hz
• Power Consumption
  • MG-105 (max./min.): 9.34 watt / 3.83 watt
  • MG-108 (max./min.): 12.24 watt / 4.48 wat
  • Standard
  • • IEEE 802.3u 100BASE-TX Fast Ethernet
    • IEEE802.3ab 1000BASE-T
    • IEEE 802.3bz 2.5GBASE-T
    • IEEE 802.3x full duplex operation and flow control
    • IEEE 802.1p QoS
    • IEEE 802.3 Nway auto-negotiation

    Performance

    • Switching capacity:
      • MG-105: 25 Gbps
      • MG-108: 40 Gbps
    • Switching forwarding rate:
      • MG-105: 18.6 Mpps
      • MG-108: 29.8 Mpps
    • MAC address table: 16 K
    • Packet buffer: 12Mb
    • Jumbo frame supports up to 12 KB

    Features

    • 100M, 1G and 2.5G ports for multi speed
    • Fanless and quiet
    • Plug and Play, Easy use and Quick Install
    • Desktop and Wall mount
    • Auto-MDI/MDIX in all ports

    •

    •

    • Item dimensions (WxDxH):

      • MG-105: 160 x 110 x 26 mm(6.3" x 4.33" x 1.02")
      • MG-108: 240 x 106 x 26 mm(9.45" x 4.13" x 1.02")

      Item weight:

      • MG-105: 460g (1.01 lb.)
      • MG-108: 640g (1.41 lb.)

      Packing dimensions (WxDxH):

      • MG-105: 215 x 133 x 79 mm (8.46" x 5.24" x 3.11")
      • MG-108: 256 x 132 x 78 mm (10.08" x 5.2" x 3.07")

      Packing weight:

      • MG-105: 919.6g (2.03 lb.)
      • MG-108: 1,122g (2.47 lb.)

      •

      •

      • Operating Environment

        • Temperature: 0°C to 40°C (32°F to 104°F)
        • Humidity: 10% to 90% (Non-condensing)

        Storage Environment

        • Temperature: -40°C to 70°C (-40°F to 158°F)
        • Humidity: 5% to 95% (Non-condensing)
