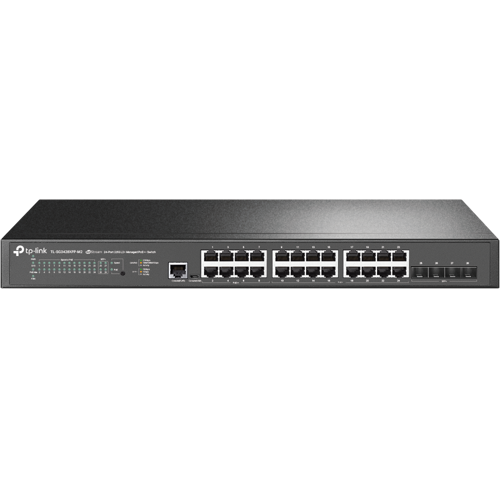

TP-Link TL-SG3428XPP-M2 24 Port 2.5 Gigabit 4 Port SFP L2 Plus Yönetilebilir Ethernet Switch

Tp-Link TL-SG3428XPP-M2 24 Port 2.5 Gigabit 4 Port SFP L2 Plus Yönetilebilir Ethernet Switch DONANIM ÖZELLİKLERİArabirim• 24× 2.5 Gbps RJ45 Ports• 4× 10G SFP+ Slots• 1× RJ45 Console Port• 1× Micro-USB Console PortFan Sayısı3Güç Kaynağı100-240 V AC~50/60 HzPoE Portları (RJ45)• Standard: 802.3bt/at/af compliant• PoE++ Ports(802.3bt PoE): 8 Ports, up to 60 W per port• PoE+ Ports(802.3at PoE): 16 Ports, up to 30 W per port• Power Budget: 500 WBoyutlar ( W X D X H )17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)MontajRack MountableMaks. Güç Tüketimi629.1 W (110V/60Hz)Max Heat Dissipation2153.45 BTU/h (110 V/60 Hz)PERFORMANSAnahtarlama Kapasitesi200 GbpsPaket Yönlendirme Hızı148.80 MppsMAC Adres Tablosu32 KPaket Buffer Belleği16 MbitJumbo Frame9 KBYAZILIM ÖZELLİKLERİQuality of Service• 8 priority queues• 802.1p CoS/DSCP priority• Queue scheduling- SP (Strict Priority)- WRR (Weighted Round Robin)- SP+WRR• Bandwidth Control- Port/Flow based Rating Limiting• Smoother Performance• Action for Flows- Mirror (to supported interface)- Redirect (to supported interface)- Rate Limit- QoS RemarkL3 Özellikleri• 32 IPv4/IPv6 Interfaces• Static Routing- 48 static routes• Static ARP- 128 Static Entries• Proxy ARP• Gratuitous ARP• DHCP Server• DHCP Relay- DHCP Interface Relay- DHCP VLAN Relay• DHCP L2 RelayL2 ve L2+ Özellikleri• Link Aggregation- static link aggregation- 802.3ad LACP- Up to 8 aggregation groups, containing 8 ports per group• Spanning Tree Protocol- 802.1d STP- 802.1w RSTP- 802.1s MSTP- STP Security: TC Protect, BPDU Filter, Root Protect• Loopback Detection- Port based- VLAN based• Flow Control- 802.3x Flow Control- HOL Blocking Prevention• Mirroring- Port Mirroring- CPU Mirroring- One-to-One- Many-to-One- Tx/Rx/BothL2 Multicast• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave- IGMP Snooping Querier- IGMP Authentication• IGMP Authentication• MLD Snooping- MLD v1/v2 Snooping- Fast Leave- MLD Snooping Querier- Static Group Config- Limited IP Multicast• MVR• Multicast Filtering: 256 profiles and 16 entries per profileGelişmiş Özellikler• Automatic Device Discovery• Batch Configuration• Batch Firmware Upgrading• Intelligent Network Monitoring
