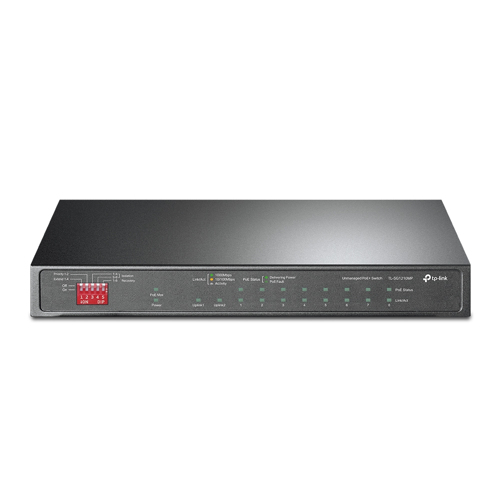

TP-Link TP-LINK TL-SG1210MP, 10 Port, GigaBit, 8 Port PoE, +1 Port GigaBit SFP, 123W, Yönetilebilir, Metal Kasalı Switch

DONANIM ÖZELLİKLERİArabirim• 9× 10/100/1000 Mbps RJ45 Ports
• 1× 1000 Mbps Combo SFP/RJ45 Port
• AUTO Negotiation
• AUTO MDI/MDIXAğ Medyası• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)Fan SayısıFanlessFiziksel Güvenlik KilidiYesHarici Güç KaynağıExternal Power Adapter (Output: 53.5VDC / 2.43A)Paket Yönlendirme Hızı14.88 MppsPoE Portları (RJ45)• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 123 WMAC Adres Tablosu4KJumbo Frame16 KBSwitching Kapasitesi20 GbpsBoyutlar ( W X D X H )8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)Maks. Güç Tüketimi• 7.93 W (220V / 50Hz with no PD connected)
• 141.40 W (220V / 50Hz with 123 W PD connected)Max Heat Dissipation• 27.04 BTU/h (220V / 50Hz with no PD connected)
• 482.17 BTU/h (220V / 50Hz with 123 W PD connected)YAZILIM ÖZELLİKLERİİletim MetoduStore-And-ForwardGelişmiş Fonksiyonlar• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–4 / 5-8)
• PoE Auto Recovery (Ports 1-8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
DİĞERLERİSertifikaFCC, CE, RoHSPaket İçeriği• TL-SG1210MP
• Power Adapter
• Installation GuideOrtam• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
