Tenda TEG1118P-16-250W 16GE Poe Port (250W) 2xsfp Switch Tenda

Tenda TEG1118P-16-250W 16GE Poe Port (250W) 2xsfp Switch

Tenda

TEG1118P-16-250W   16GE+2SFP Ethernet Switch With 16-Port PoEGenel Bakış

• Anasayfa
• PoE Switch
• TEG1118P-16-250W
• Genel Bakış

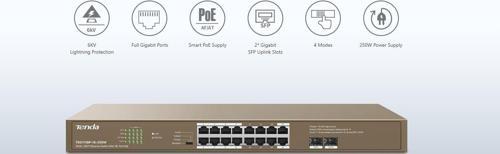

TEG1118P-16-250W   16GE+2SFP Ethernet Switch With 16-Port PoE Dedicated For SMB Networking & Surveillance

6KV
Lightning Protection

Full Gigabit Ports

Smart PoE Supply

2* Gigabit
SFP Uplink Slots

4 Modes

250W Power Supply

Gigabit SFP Uplink Slots:
Long-distance Lossless Transmission With two 1000 Mbps SFP slots, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance. Working with Tenda optical fiber module TEG311SM, the switch supports a maximum transmission distance up to 20km. 4 Modes For More Scenarios, One-key To Change Smart And Easy Standard mode, Priority mode, VLAN mode and Extend mode make TEG1118P-16-250W be able to deal with different networks, special for small & Medium-sized IP Surveillance & WI-FI coverage project. Standard Mode Default mode of the switch. In this mode, it works as an unmanaged switch;
all ports can communicate with each other separately. Priority Mode In this mode, port15,16,SFP1,SFP2 serve as uplink ports,
ports 1–8 serve as high priority port. All ports can communicate with each other separately. Extend Mode In this mode, data rate of ports 9-14 reduces to 10 Mbps,
the maximum transmission distance can be 250 meters, and all ports can communicate with each other. VLAN Mode In this mode, ports 1 to 14 of the switch can communicate with port 15, 16, SFP1,
SFP2 separately, but cannot communicate with each other.
You can enable this mode to reduce broadcast storm and isolate DHCP broadcast. 6KV Excellent Lightning Protection The switch offers various safety and protection types, including 6 KV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection etc, and these greatly protect the switch from being damaged by inductive thunderstorm. 230W High Power Output, Diversified Applications Providing 16 100/1000M PoE ports in accordance with the IEEE802.3AF / AT standard, the maximum PoE output of the whole machine is 230W, and of a single port is 30W. Not afraid of burst traffic, avoid power failure & restart. It can provide stable power supply and data transmission for HD PoE IP cameras, APs, etc. It's an ideal choice for SMBs, hotels, schools, factories and etc.

WLAN

HD Surveillance

IP Phone

Integrated With Smart Power Management
Chip Keeps A Stable Transmission It includes chips with smart power management function and integrated professional chip control algorithm, which can accurately calculate the output power. When the power of the receiving equipment exceeds the rated power (230W) of the PoE switch, the low priority port will automatically power off to avoid the over-run of the equipment and prolong the service life of the equipment.

 With Smart Power Management Chip

Keep Overloaded Running Away & Prolong the Service Life of the Device.

 No Power Management

All ports are powered off

When the power exceeds for a period of time, all ports are powered off and the switch cannot be used, and a network failure occurs.

Tenda TEG1118P-16-250W 16GE Poe Bağlantı Noktası (250W), 2xsfp Anahtar

Donanım

Ağ Standartları

IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at

LED Göstergeleri

16 * Link/Act LED'leri
2 * SFP LED'i
1 * PoE-MAX LED'i
1 * Güç LED'i

Arayüzler

16*10/100/1000 Base-T bağlantı noktası (Veri/Güç)

İletim Medyası

önerilen: CAT5/5e UTP veya daha iyisi

Fan miktarı

1

Boyut

440*178.8*44mm

Koruma Seviyesi

Portlar için yıldırımdan korunma: 6kV
Güç için yıldırımdan korunma: 6kV
ESD:
Hava değişikliğini: ±10kV
Kontak azaltmayı: ±8kV

Yönlendirme modu

Mağaza ve ileri

Anahtar Kapasitesi

36bps

Paket Yönlendirme Hızı

26,8Mp/sn

Tampon

2 milyon

MAC Adres Tablosu

8K

Jumbo çerçeve

Yok

PoE bütçesi

Tek port: AF: 15,4W, AT: 30W
Tüm cihaz: 230W

Güç Tüketimi

/

Giriş Voltaj

100-240V AC 50/60Hz

Montaj

Masaüstü montajı: montajı
Duvar montajı: destek yok
Raf montajı: destek yok

Çevre

Çalışma Sıcaklığı: 0°C~45°C
Depolama Sıcaklığı: -40°C~70°C
Çalışma Nemi: %10~90 yoğuşmasız
Depolama Nemi: %5~90 yoğuşmasız

Sertifikasyon

FCC, CE, RoHS
