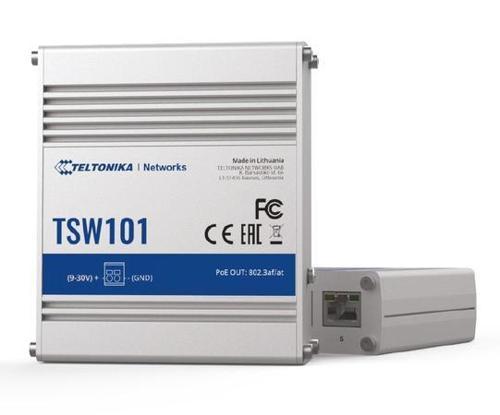

Oem Teltonika TE-TSW101 5 Port Gigabit 4 Port PoE+ Aouromotive PoE+ Switch

Teltonika TE-TSW101 5 Port Gigabit 4 Port PoE+ Aouromotive PoE+ Switch INTERFACESEthernet5 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossoverPOEPoE portsPort 1- 4PoE standards802.3af and 802.3atPoE Max Power per Port (at PSE)30 WTotal PoE Power Budget (at PSE)60 WMaximum Ethernet cable length100 mPERFORMANCE SPECIFICATIONSBandwidth (Non-blocking)10 GbpsPacket buffer128 KBMAC address table size2K entriesJumbo frame support9216 bytesPOWERConnector2-pin industrial DC power socketInput voltage range9-30 VDCInput voltage range for PoE9-30 VDCPower consumptionIdle: 0.64 W / Max: 2.31 W / PoE Max: 60 WPHYSICAL INTERFACES (PORTS, LEDS)Ethernet5 x RJ45 ports, 10/100/1000 MbpsStatus LED’s1 x Power LED, 10 x LAN status LED’sPower1 x 2-pin industrial DC power socketGround1 x Grounding screwPHYSICAL SPECIFICATIONCasing materialAluminum housingDimensions (W x H x D)115 x 32 x 95 mmWeight354 gMountingDIN rail or wall mounting (additional kit needed), flat surface placementOPERATING ENVIRONMENTOperating temperature-40 °C to +75 °COperating humidity10 % to 90 % non condensingIngress Protection RatingIP30CERTIFICATION & APPROVALSRegulatoryCE, REACH, RoHS, WEEE TSW101 CE TSW101 UKCA TSW101 FCC TSW101 IC TSW101 CB TSW101 RCM E-Mark
