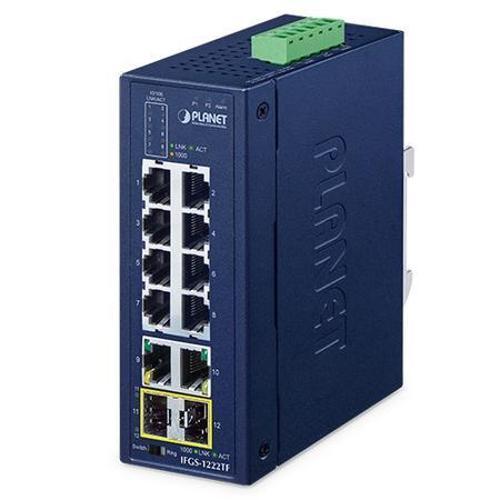

Planet PL-IFGS-1222TF 8 Port 100Mbps 4 Port SFP Industrial Ethernet Switch

Planet PL-IFGS-1222TF 8 Port 100Mbps 4 Port SFP Industrial Ethernet Switch Hardware Specifications10/100TX Copper Ports8 x 10/100BASE-TX RJ45 TPAuto-MDI/MDI-X, auto-negotiation, Port 1 to Port 810/100/1000T Copper Ports2 x 10/100/1000BASE-T RJ45 TPAuto-MDI/MDI-X, auto-negotiation, Port 9 to Port 101000X SFP Slots2 x 1000BASE-X SFP interfaces, Port 11 to Port 12DIP SwitchDIP SwitchPositionFunctionModeOFFRingON (default)Switch ModeNote :1.Power off the IFGS-1222TF before adjusting the DIP switch and then power it on.2.With a simple ring network with 8 units, the recovery time of data link can be as fast as 1ms.3.Ring performance may vary depending on the length of the fiber optic and UTP cables.ConnectorRemovable 6-pin terminal blockPin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2AlarmProvides one relay output for power failureAlarm Relay current carry ability: 1A @ DC 24VESD Protection±6KV air gap discharge±6KV contact dischargeSurge Immunity6KV DCEnclosureIP30-rated metal caseInstallationDIN-rail kit and wall-mount earDimensions (W x D x H)50 x 86.4 x 135 mmWeight545gPower RequirementsDC 9~48V or AC 24VRedundant power with reverse polarity protectionPower Consumption / Dissipation (Full Loading)DC 9V: 4.6 watts/15.6BTUDC 48V: 6 watts/20.4BTUAC 24V: 5.7 watts/19.4BTULED3 x LED for System and Power:?Green: DC Power 1?Green: DC Power 2?Red: Alarm1x LED for Per Copper Port (Port-1~Port-8):?Green: 10/100 LNK/ACT2 x LED for Per Copper Port (Port-9~Port-10):?Green: LNK/ACT?Amber: 10001 x LED for Per SFP interface (Port-11~Port-12):?Green: 1G LNK/ACTSwitch SpecificationsSwitch Processing SchemeStore-and-ForwardSwitch Fabric9.6GbpsThroughput (packet per second)7.14Mpps@64bytesAddress Table4K entriesJumbo Frame16K bytesFlow ControlBack pressure for half duplexIEEE 802.3x pause frame for full duplexStandards ConformanceStandards ComplianceIEEE 802.3 Ethernet 10BASE-TIEEE 802.3u Fast Ethernet 100BASE-TXIEEE 802.3ab Gigabit Ethernet 1000BASE-TIEEE 802.3z Gigabit Ethernet 1000BASE-SX/LXIEEE 802.3x Full-Duplex Flow ControlIEEE 802.1p Class of Service (Works under Ring function disable)PROFINET Traffic Pass-through with QoSRegulatory ComplianceFCC Part 15 Class A, CEStability TestingIEC60068-2-32 (Free fall)IEC60068-2-27(Shock)IEC60068-2-6 (Vibration)EnvironmentTemperatureOperating
