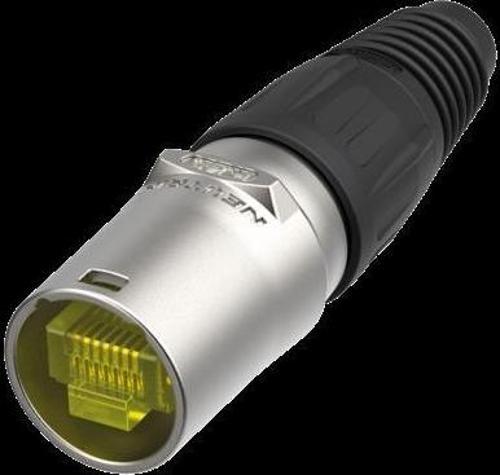

Neutrik NE8MX-1 Ethercon Serisi RJ45 Konnektör

Neutrik NE8MX-1 Ethercon Serisi RJ45 Konnektör

Cable connector carrier consists of a shell, fixing disk, chuck and boot. The boot (same as XLR X-Series) is suitable for cable diameters from 3.5 - 8 mm. For non preassembled cables only. Cable connector carrier does not include a RJ45 plug.

The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.

Features :

• The RJ45 system for harsh and demanding environment
• Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
• Rugged diecast shell and unique chuck type strain relief
• Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors
• O-ring gasket to achieve IP54 water protection
• Accessories include color coded boots in 9 standard colors

Specs :

• PLUG, ETHERCON
• Connector Type: RJ45
• Series: ETHERCON
• Gender: Plug
• No. of Contacts: 8
• No. of Positions: 8
• No. of Ports: 1
• SVHC: No SVHC (19-Dec-2012)
• No. of Ways: 8
