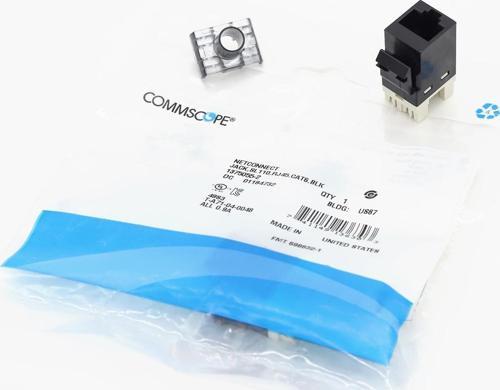

KEYSTONE JACK UTP CAT6 180 D BLACK 1375055-2 (10'LU PAKET )
RENK: SİYAH
PAKET İÇERİĞİ : 10 ADET
MARKA : COMMSCOPE
Specifications
Product Classification
Regional Availability
Asia | Australia/New Zealand | EMEA | Latin America
Portfolio
NETCONNECT®
Product Type
Modular jack
Product Series
SL Series
General Specifications
ANSI/TIA Category
6
Cable Type
Unshielded
Color
Black
Conductor Type
Solid | Stranded
Integrated Dust Cover Type
None
Mounting
SL Series facePilates and panels
Mounting Note
Color matches with SL-style Black FacePilates and Surface Mount Boxes
Outlet Feature
Inverted jack face
Outlet Type
Standard
Termination Punchdowns, minimum
200 times
Termination Tool
SL Termination tool
Termination Type
IDC
Transmission Standards
ANSI/TIA-568.2-D | ISO/IEC 11801 Class E
Wiring
T568A | T568B
Dimensions
Panel Cutout, recommended
14.78 x 20.07 mm (0.58 x 0.79 in)
Panel Thickness, recommended
1.6 mm | 0.063 in
Height
16.26 mm | 0.64 in
Width
14.48 mm | 0.57 in
Depth
30.48 mm | 1.2 in
Compatible Insulated Conductor Diameter, maximum
1.45 mm | 0.057 in
Contact Plating Thickness
1.27 µm
Compatible Conductor Gauge, solid
24–22 AWG
Compatible Conductor Gauge, stranded
26–24 AWG
Electrical Specifications
Contact Resistance Variation, maximum
20 mOhm
Contact Resistance, maximum
100 mOhm
Current Rating at Temperature
1.5 A @ 20 °C | 1.5 A @ 68 °F
Dielectric Withstand Voltage, RMS, conductive surface
1,500 Vac @ 60 Hz
Dielectric Withstand Voltage, RMS, contact-to-contact
1,000 Vac @ 60 Hz
Insulation Resistance, minimum
500 MOhm
Remote Powering
Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002
PoE Durability
Supports IEEE 802.3bt Type 4 (90 W) applications after 3000 plug to jack mating cycles
Safety Voltage Rating
150 Vac
Material Specifications
Contact Base Material
Beryllium copper
Contact Plating Material
Gold
Material Type
Polycarbonate
Termination Contact Plating
Tin
Mechanical Specifications
Plug Retention Force, minimum
50 N | 11.240 lbf
Plug to Jack Mating Cycles
Complies to IEC 60603-7 series
Environmental Specifications
Operating Temperature
-10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature
-40 °C to +70 °C (-40 °F to +158 °F)
Flammability Rating
UL 94 V-0
Safety Standard
UL | cUL
Packaging and Weights
Included
Strain relief cap
Packaging quantity
1
Packaging Type
Bag
Regulatory Compliance/Certifications
Agency
Classification
RCM
Compliant to electrical safety & telecommunications requirements
ROHS
Compliant
CHINA-ROHS
Below maximum concentration value
REACH-SVHC
Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS
Compliant
