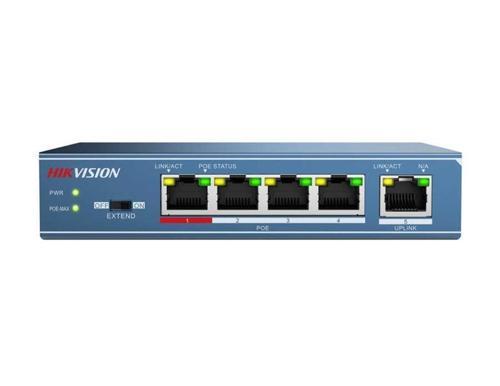

Hikvision DS-3E0105P-E/M 4 Port PoE 1 Port Uplink Yonetilemez PoE Switch

Hikvision DS-3E0105P-E/M 4 Port PoE 1 Port Uplink Yonetilemez PoE Switch

• PoE Power Supply
• PoE StandardIEEE 802.3af, IEEE 802.3at
• PoE Power PinSupports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
• PoE PortPorts 1 to 4
• Max. Port Power30 W
• PoE Power Pudget35 W
• Max. Power Consumption38 W
• Network Parameters
• Port Number4 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Forwarding ModeStore-and-forward switching
• Working ModeStandard mode (default); Extend mode
• High Priority PortsPorts 1 to 2
• Ports For Long-Distance TransmissionPorts 1 to 4
• MAC Address Table1 K
• Switching Capacity1 Gbps
• Packet Forwarding Rate0.744 Mpps
• Internal Cache448 Kbits
• General
• ShellMetal material, fan-free design
• Gross Weight0.48 kg (1.06 lb)
• Net Weight0.2 kg (0.4 lb)
• Dimension (L × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
• Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Storage Humidity5% to 95% (no condensation)
• Power Supply48 VDC, 0.8 A
• Power Consumption In Idle3 W
• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
