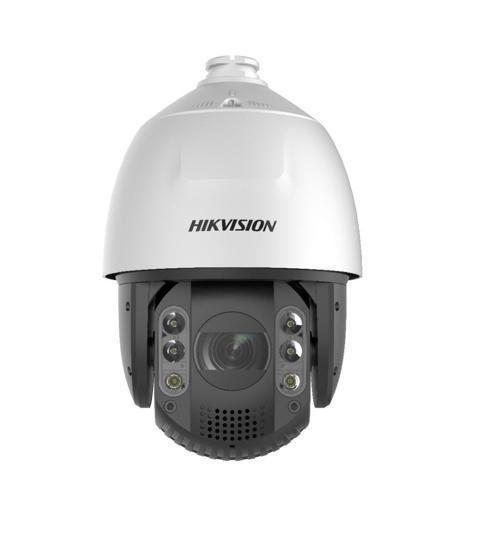

Hikvision DS-2DE7A232IW-AEB 2mp 4.8mm-153mm 32x Optik Zoom H.265+ 200mt DarkFighter IR IP PTZ Kamera

Hikvision DS-2DE7A232IW-AEB 2mp 4.8mm-153mm 32x Optik Zoom H.265+ 200mt DarkFighter IR IP PTZ Kamera Ayak Dahil

• 2mp 1/2.8" CMOS
• 32X PTZ - 0.005 Lux - 120 dB WDR - 200m IR - MicroSD kart - Dahili hoparlör
• Flaşör ışık alarmı - 5 Yüze kadar algılama - yakalama - derecelendirme - seçme - Hat ihlali
• Alan ihlali | Bölge giriş ve çıkış | İnsan ve araç ayrımı | Auto-tracking | Alüminyum | 24
• VAC / Hi-PoE - AcuSense - Darkfighter - Ses ve Alarm giriş - IP66 - IK10 - Ayak dahil

7-inch 2 MP 32X Powered by DarkFighter IR Network Speed Dome

• 1/2.8" progressive scan CMOS
• High quality imaging with 2 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
• 32× optical zoom and 16× digital zoom provide close up views over expansive areas
• Expansive night view with up to 200 m IR distance
• Focuses on human and vehicle targets classification based on deep learning
• Face capture: Up to 5 faces captured at the same time
• Kamera
• Image Sensor1/2.8" progressive scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux@(F1.6, AGC ON), 0 Lux with IR
• Shutter Speed1/1 s to 1/30000 s
• Slow ShutterYes
• Day & NightIR cut filter
• Zoom32x optical, 16x digital
• DORI

Detect (25px/m): 2046.9 m

Observe (63px/m): 812.3 m

Recognize (125px/m): 409.4 m

Identify (250px/m): 204.7 m

• Lens
• Focal Length4.8 mm to 153 mm
• Zoom SpeedApprox. 4.8 s
• FOV

Horizontal field of view: 50.8° to 2.6° (wide-tele),

Vertical field of view: 29.4° to 1.5° (wide-tele),

Diagonal field of view:57.4° to 3° (wide-tele)

• ApertureMax. F1.6
• FocusAuto, semi-auto, manual
• Illuminator
• Supplement Light RangeIR Distance: up to 200 m
• Supplement Light TypeIR
• PTZ
• Movement Range (Pan)360°
• Movement Range (Tilt)-15° to 90° (auto flip)
• Pan SpeedPan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
• Tilt SpeedTilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
• Proportional PanYes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans
• Power-Off MemoryYes
• Park ActionPreset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• 3D PositioningYes
• PTZ Status DisplayYes
• Preset FreezingYes
• Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
• Video
• Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video Compression

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG

• Video Bit Rate32 kbps to 16384 kbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)8 fixed regions for each stream
• Audio
• Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
• Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise FilteringYes
• Network
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users, 3 user levels: administrator, operator, and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
• ClientiVMS-4200, HikCentral Pro, Hik-Connect
• Web BrowserIE11, Chrome 57+, Firefox 52+, Safari 11+
• Image
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Wide Dynamic Range (WDR)120 dB
• DefogDigital defog
• Image StabilizationEIS
• Regional ExposureYes
• Regional FocusYes
• Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
• SNR> 52 dB
• Interface
• Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Alarm2 inputs, 1 output
• Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
• SIFIRLAYes
• Built-In Speaker1 built-in speaker with effective distance reaching max. 30 meters
• Event
• Basic EventMotion detection, video tampering alarm, exception, alarm input and output
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
• Smart TrackingManual tracking, auto-tracking
• Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
• Deep Learning Function
• Face Capture

Detects up to 5 faces simultaneously.

Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face

• Perimeter Protection

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

• General
• Power

24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater);

Hi-PoE

• Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
• DemistYes
• MaterialADC12
• DimensionØ 220 mm × 363.3 mm (Ø 8.66" × 13.91")
• Approx. 5 kg (11.03 lb.)
• Approval
• ProtectionIP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection
• EMC

FCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC VoC (ICES-003: Issue 6, 2019);

KC (KN 32: 2015, KN 35: 2015)

• Safety

UL (UL 62368-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 62368-1:2014+A11:2017);

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

LOA (SANS IEC60950-1)

• Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)
