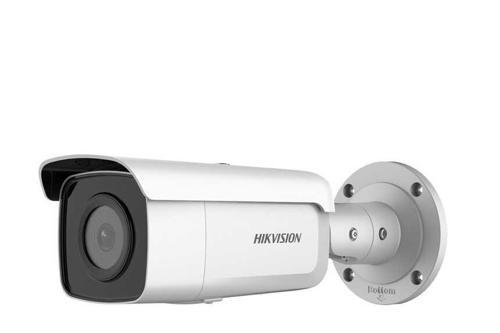

Hikvision DS-2CD2T26G2-2I 2mp 4mm Lens H.265+ ACUSENSE IR Bullet IP Kamera

Hikvision DS-2CD2T26G2-2I 2mp 4mm Lens H.265+ ACUSENSE IR Bullet IP Kamera

2 MP ACUSENSE IR Bullet Kamera (H.265+, DARKFIGHTER, 80mt), 1/2.8” PS CMOS, 4mm sabit lens Color: 0.002 Lux, Üçlü akış desteği (Third Stream), Slowshutter, 60mt IR, 3D DNR, 120dB WDR, BLC, ROI, ICR, 0lux with IR, H.265+/H.265/H.264+/H.264/MJPEG, Analizler (Hat İhlali, Alan İhalali, Yüz Yakalama), maskeleme, 128GB mSD desteği, IP67, DC12V & PoE

• Kamera
• Image Sensor1/2.8" Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.002 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
• Lens
• Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV

2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 129°

4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 102°

6 mm, horizontal FOV 55°, vertical FOV 29°, diagonal FOV 65°

• Lens MountM12
• Iris TypeFixed
• ApertureF1.4
• Depth Of Field

2.8 mm: 1.1 m to ∞

4 mm: 1.2 m to ∞

6mm: 3 m to ∞

• DORI
• DORI

2.8 mm: D: 44 m, O: 17 m, R: 9 m, I: 4 m

4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m

6 mm: D: 87 m, O: 34 m, R: 17 m, I: 9 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light Range2I: Up to 60 m, 4I: Up to 80 m
• Smart Supplement LightYes
• IR Wavelength850 nm
• Video
• Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),

*Third stream is supported under certain settings.

• Video Compression

Main stream: H.265/H.264/H.264+/H.265+,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

*Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region(s) for main stream and sub-stream
• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
• Smooth StreamingYes
• User/Host

Up to 32 users

3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
• Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

Plug-in required live view: IE 10+, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Image EnhancementBLC,HLC,3D DNR
• Privacy MaskYes
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

• Reset KeyYes
• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),

Scene change detection

• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
• Deep Learning Function
• Face CaptureYes
• General
• Power

2I: 12 VDC ± 25%, 0.63 A, max. 7.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W; 4I: 12 VDC ± 25%, 0.88 A, max. 10.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12 W

• MaterialFront cover: metal, back cover: metal
• Dimension289 mm × 93.1 mm × 91.2 mm (11.4" × 3.7" × 3.6")
• Package Dimension386 mm × 156 mm × 155 mm (15.2" × .1" × 6.1")
• Approx. 1020 g (2.2 lb.)
• With Package WeightApprox. 1629 g (3.6 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionHeartbeat,anti-flicker,mirror,flash log,password reset via email,pixel counter
• Approval
• EMC

FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

KC: KN32: 2015, KN35: 2015

• Safety

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

LOA: IEC/EN 60950-1

• Environment

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
