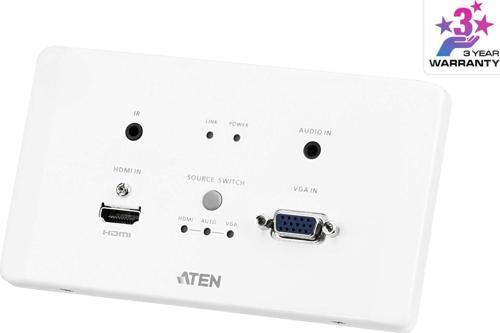

Aten HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A) (PoH PD)

• Extends HDMI or VGA signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
• Superior video quality:
  • HDMI: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
  • VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
• HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
• Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
• Designed to mount in a two-gang junction box, compatible with EU & MK type
• Built-in PoH (Power over HDBaseT) function – the VE2812AEUT receives power supply from the HDBaseT output port on the connected device
• Supports Auto Switch – allows the VE2812AEUT to automatically switch to a newly plugged-in source
• Functions as a switch or a converter
  • A Switch: Connects two sources (HDMI or VGA)
  • A Converter: Applies receivers with different interface (DVI, DisplayPort, or HDMI)
• Supports RS-232 channel transmission or command mode for source switch control
• Compatible Receivers – VE2812R, VE1812R, VE812R, VE814AR, VE811R, VE801R, VE802R, VE601R, VE901R, VE2812PR or future ATEN HDBaseT Receivers
• Plug-and-play
• LED indication of sources and device status
• Built- in 8KV / 15 KV ESD protection

Video Input Interfaces 1 x HDMI Type A Female (Black)
1 x HDB-15 (VGA) Female (Blue) Impedance HDMI: 100 Ω
HDB-15 (VGA): 75 Ω Max. Distance HDMI: 3 m
HDB-15(VGA): 10m Video Max. Data Rate 10.2Gbps (3.4Gbps per lane) Max. Pixel Clock 340 MHz Compliance HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC) Max. Resolutions / Distance HDMI: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
VGA: Up to 1920x1200 & 1600x1200@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1920x1080@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Audio Input 1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green) Control RS-232 Connector: 1 x Terminal Block, 3 pole (Green)
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control IR 1 x Mini Stereo Jack Female (Black) Switches Video Input Port Selection 1 x Push Button - HDMI, VGA and AUTO Long Reach Mode Switch 1 x Slide Switch - ON/OFF Firmware Upgrade 1 x Slide Switch - ON/OFF Connectors Unit To Unit 1 x RJ-45 Female Power 1 x Terminal Block, 2 pole (Green) or
1 x RJ-45 Female (POH) Power Consumption DC5V:3.14W:15BTU/h
POH:3.93W:18BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. Environmental Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal Weight 0.30 kg ( 0.66 lb ) Dimensions (L x W x H) 5.00 x 10.80 x 5.17 cm
(1.97 x 4.25 x 2.04 in.) Faceplate Dimensions (L x W x H) 8.60 x 15.10 x 1.35 cm
(3.39 x 5.94 x 0.53 in.)
