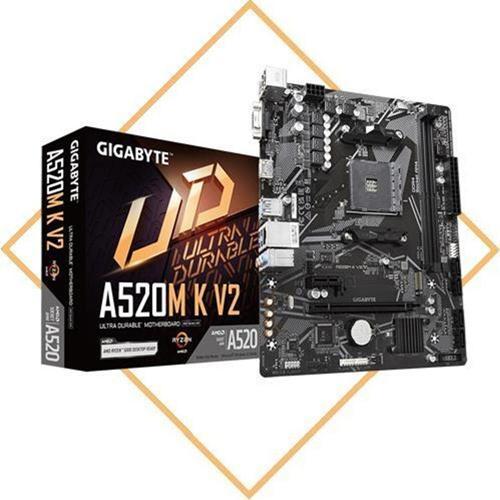

Gigabyte A520M-K V2 Ddr4 5100Mhz Pci-E Gen3 M.2 Usb 3.2 Vga Hdmi Matx Am4 Anakart

Gigabyte A520M-K V2 Ddr4 5100Mhz Pci-E Gen3 M.2 Usb 3.2 Vga Hdmi Matx Am4 Anakart 4719331852771

Ürün detayları

cpu amd socket am4, support for: Amd ryzen™ 5000 g-Series processors/ amd ryzen™ 5000 series processors/ amd ryzen™ 4000 g-Series processors/ amd ryzen™ 3000 series processors(please refer "cpu support list" for more information.)

chipset amd a520

memory 2 x ddr4 dımm sockets supporting up to 64 gb (32 gb single dımm capacity) of system memory support for ddr4 5100(o.C.) / 4800(o.C.) / 4600(o.C.) / 4400(o.C.) / 4266(o.C.) / 4133(o.C.) / 4000(o.C.) / 3866(o.C.) / 3733(o.C.) / 3600(o.C.) / 3466(o.C) / 3400(o.C.) / 3200 / 2933 / 2667 / 2400 / 2133 mhz memory modules dual channel memory architecture support for ecc un-Buffered dımm 1rx8/2rx8 memory modules (operate in non-Ecc mode) support for non-Ecc un-Buffered dımm 1rx8/2rx8/1rx16 memory modules support for extreme memory profile (xmp) memory modules(please refer "memory support list" for more information.)

onboard graphics ıntegrated graphics processor: 1 x d-Sub port, supporting a maximum resolution of 1920x1200@60 hz 1 x hdmı port, supporting a maximum resolution of 4096x2160@60 hz* support for hdmı 2.1 version, hdcp 2.3, and hdr.Maximum shared memory of 16 gb

audio realtek® audio codec high definition audio 2/4/5.1/7.1-Channel* you can change the functionality of an audio jack using the audio software. To configure 7.1-Channel audio, access the audio software for audio settings.

Lan realtek® gbe lan chip (1 gbps/100 mbps)

expansion slots cpu: 1 x pcı express x16 slot, supporting pcıe 3.0 and running at x16chipset: 1 x pcı express x1 slot, supporting pcıe 3.0 and running at x1

storage ınterface cpu: 1 x m.2 connector (socket 3, m key, type 2280 sata and pcıe 3.0 x4/x2 ssd support)chipset: 4 x sata 6gb/s connectorssupport for raıd 0, raıd 1, and raıd 10

usb cpu: 4 x usb 3.2 gen 1 ports on the back panelchipset: 2 x usb 3.2 gen 1 ports available through the internal usb header 6 x usb 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal usb headers)

ınternal ı/o connectors 1 x 24-Pin atx main power connector 1 x 8-Pin atx 12v power connector 1 x cpu fan header 1 x system fan header 1 x m.2 socket 3 connector 4 x sata 6gb/s connectors 1 x front panel header 1 x front panel audio header 1 x usb 3.2 gen 1 header 2 x usb 2.0/1.1 headers 1 x trusted platform module (tpm) header (2x6 pin, for the gc-Tpm2.0_s module only) 1 x speaker header 1 x clear cmos jumper 1 x chassis intrusion header

back panel connectors 1 x ps/2 keyboard/mouse port 1 x d-Sub port 1 x hdmı port 4 x usb 3.2 gen 1 ports 2 x usb 2.0/1.1 ports 1 x rj-45 port 3 x audio jacks

ı/o controller ite® ı/o controller chip

h/w monitoring voltage detection temperature detection fan speed detection fan fail warning fan speed control* whether the fan speed control function is supported will depend on the cooler you install.

Bıos 1 x 128 mbit flash use of licensed amı uefı bıos pnp 1.0a, dmı 2.7, wfm 2.0, sm bıos 2.7, acpı 5.0

unique features support for app center* available applications in app center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@bıoseasytunesmart backupsystem ınformation viewer support for q-Flash support for xpress ınstall bundled software norton® ınternet security (oem version) lan bandwidth management software

operating system support for windows 11 64-Bit support for windows 10 64-Bit

form factor micro atx form factor
