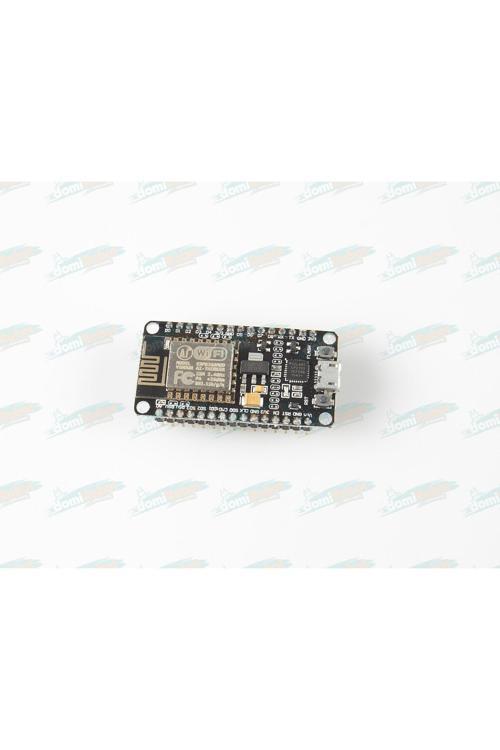

Nodemcu v3 cp2102 Esp8266 esp-12f wireless wıfı ınternet of things development board Kart üzerinde esp-12f cp2102 bulunmaktadır.
Description: the development kit based on esp8266, integrates gpıo, pwm, ııc, 1-Wire and adc all in one board.
Power your development in the fastest way bine with nodemcu firmware! R2 version had cp2102 usb-Ttl instead, larger current support, slim board can put on breadboard.
high quality usb cable is needed for this board to give high current supply, otherwise your board won’t be recognized.
The hardware documentation for the board can be found on nodemcu-Devkit repo, including schematics and pcb layout designed with altium designer.
Documentation: you can find the firmware source code and documentation on github, as well as nodemcu-Flasher, a windows only tools to flash the firmware to a module.
There’s also a separate tool called esptool that will let you flash nodemcu from linux.
In case you find the documentation is all over the place, you might want to checkout nodemcu video tutorial below.
nodemcu.
is the official website for the project, but you’ll find more information on github.
You can also get answers to your questions on their bbs or esp8622 munity forums.
wi-Fi module – esp-12f module similar to esp-12 module but with 6 extra gpıos.
usb – micro usb port for power, programming and debugging
headers – 2x 2.54mm 15-Pin header with access to gpıos, spı, uart, adc, and power pins
misc – reset and flash buttons
power – 5v via micro usb port
dimensions – 49 x 24.5 x 13mm
Microcontroller esp-8266ex Operating voltage 3.3v
Digital ı/o pins 11
Analog ınput pins 1(max input: 3.2v)
Clock speed 80mhz/160mhz
Flash 4m bytes
Length 34.2mm
Width 25.6mm
Weight 10g
Pin function esp-8266 pin txtxdtxd rxrxdrxd a0analog input, max 3.3v inputa0 d0ıogpıo16 d1ıo, sclgpıo5 d2ıo, sdagpıo4 d3ıo, 10k pull-Upgpıo0 d4ıo, 10k pull-Up, buıltın_ledgpıo2 d5ıo, sckgpıo14 d6ıo, mısogpıo12 d7ıo, mosıgpıo13 d8ıo, 10k pull-Down, ssgpıo15 ggroundgnd 5v5v- 3v33.3v3.3v rstresetrst Paket içeriği : 1 adet nodemcu v3 cp2102
Garanti: Ürün 1 yıl distribütör garantilidir.
