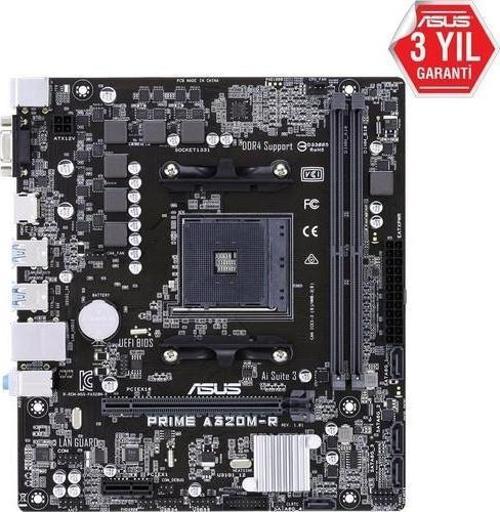

ASUS Prime A320M-R-SI mATX DDR4 AM4 Anakart

AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors
Supports CPU up to 8 cores


AMD A320

AMD Ryzen™ Processors
2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
AMD 7th Generation A-series/Athlon™ Processors
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *1
Multi-VGA output support : HDMI/RGB ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB

AMD Ryzen™ Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD 7th Generation A-series/Athlon™ Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD A320 chipset
2 x PCIe 2.0 x1

AMD A320 chipset :
4 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 10
AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD 7th Generation A-series/Athlon™ Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC

AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
4 x USB 3.0 port(s) (4 at back panel, blue)
AMD A320 chipset :
2 x USB 3.0 port(s) (2 at mid-board)
AMD A320 chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM

Windows® 10 , 64bit

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
3 x Audio jack(s)

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector

User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

Windows® 10 64-bit

mATX Form Factor
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
