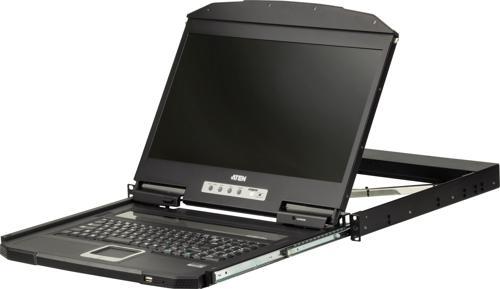

Aten 18.5 LCD screen with Full HD resolution of 1920 x 1080, Turkish keyboard (Ultra Short Depth Single Rail WideScreen LCD Console (USB, HDMI))

18.5 LCD screen with Full HD resolution of 1920 x 1080, Turkish keyboard (Ultra Short Depth Single Rail WideScreen LCD Console (USB, HDMI))

• Space Utility Optimization
  • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated LCD KVM console with an 18.5 LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
  • Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
  • Console lock – enables the console drawer to remain securely locked away in position when not in use
  • Optional 2-in-1U Mounting Kit (2K-0001/2K-0002/2K-0007) – fitting the CL3700 and a rack KVM switch/KVM over IP switch in 1U of space on a rack for space-saving, easy and flexible operation*

• Remarkable Video Experience
  • Supports HDMI video input
  • The 18.5 LCD screen offers resolutions of up to 1920 x 1080 (Full HD) @ 60Hz for CL3700NW and resolutions of up to 1366 x 768 @ 60Hz for CL3700NX
  • External console supports input video resolutions up to 1920 x 1200 @ 60Hz

• Installation Flexibility
  • Standard rack mount kit included
  • Optional rack mount kits available including easy installation options1
  • No software required
  • Firmware upgradable
  • Supports hot-plugging

• Reliability and Operational Versatility
  • Supports an external console with USB / HDMI connectors
  • Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
  • Console selection via hotkey
  • Standard 105-key keyboard
  • High/ Low Temperature, Vibration and Shock Resistance Test – MIL-STD-810G compliant (CL3700NW only)2

    Note:
    1. Contact your ATEN dealer for product information
    2. For more information about MIL-STD-810G environmental testing, please refer to user manual

    More information about Easy Rack Mounting ...

FunctionCL3700NWCL3700NX

Computer Connections

Direct11

Console SelectionHotkeyHotkey

Connectors

KVM Ports1 x HDMI Female
1 x USB Type B Female1 x HDMI Female
1 x USB Type B Female

Firmware Upgrade1 x 3.5mm Audio Jack Female (Black)1 x 3.5mm Audio Jack Female (Black)

Power1 x IEC 60320/C141 x IEC 60320/C14

External Console Ports1 x HDMI Female
2 x USB Type A Female1 x HDMI Female
2 x USB Type A Female

External Mouse / Peripheral1 x USB Type A Female (Front)1 x USB Type A Female (Front)

Switches

Reset1 x Semi-recessed Pushbutton1 x Semi-recessed Pushbutton

Firmware Upgrade1 x Slide Switch1 x Slide Switch

Power1 x Rocker Switch1 x Rocker Switch

LCD Control4 x Pushbutton4 x Pushbutton

LCD Power1 x LED Pushbutton1 x LED Pushbutton

LEDs

Power1 x KVM Console (Dark Green)
1 x LCD (Orange)1 x KVM Console (Dark Green)
1 x LCD (Orange)

Lock1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)

LED Illumination Light1 x LED Illumination Light1 x LED Illumination Light

Panel Spec

LCD Module18.5 TFT-LCD18.5 TFT-LCD

Resolution1920 x 1080 @ 60 Hz1366 x 768 @ 60Hz

Response time20 ms5 ms

Viewing Angle178° (H), 178° (V)170° (H), 160° (V)

Pixel Pitch0.213 mm x 0.213 mm0.3 mm x 0.3 mm

Support Color16.77M colors16.77M colors

Contrast Ratio1000 : 11000 : 1

Luminance350 cd/m²250 cd/m²

Video

Input Video Resolutionup to 1920 x 1200 @ 60Hz;
1920 x 1080 @ 60 Hz, DDC2Bup to 1920 x 1200 @ 60Hz;
1366 x 768 @ 60 Hz, DDC2B

Emulation

Keyboard / MouseUSBUSB

Maximum Input Power Rating100–240 V AC, 50/60 Hz, 1 A100–240 V AC, 50/60 Hz, 1 A

Power ConsumptionAC110V:23.3W:124BTU/h
AC220V:23.9W:127BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.AC110V:13.6W:79BTU/h
AC220V:13.5W:78BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature0–40°C0–40°C

Storage Temperature-20–60°C-20–60°C

Humidity0–80% RH, Non-condensing0–80% RH, Non-condensing

Physical Properties

HousingMetal + PlasticMetal + Plastic

Rail TypeSingle RailSingle Rail

Weight9.01 kg ( 19.85 lb )9.03 kg ( 19.89 lb )

Dimensions (L x W x H)48.06 x 47.70 x 4.28 cm
(18.92 x 18.78 x 1.69 in.)48.06 x 47.70 x 4.28 cm
(18.92 x 18.78 x 1.69 in.)

Body Dimensions(L x W x H)44.92 x 43.00 x 4.28 cm44.92 x 43.00 x 4.28 cm

NoteBody Dimensions exclude I/O ports, handles, and mounting brackets.Body Dimensions exclude I/O ports, handles, and mounting brackets.

NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
