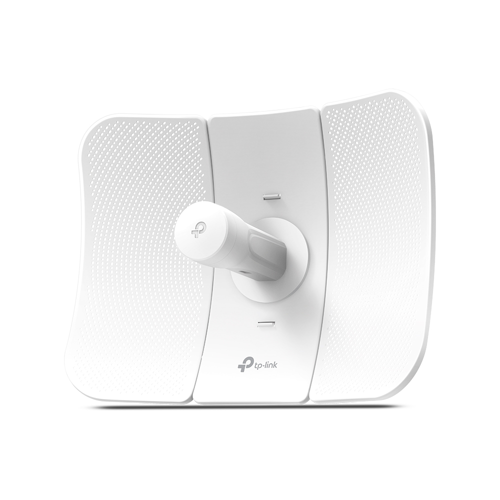

TP-Link TP-LINK CPE710, 867Mbps, 5Ghz WiFi, 23dbi Anten, Noktadan Noktaya, Dış Mekan, Access Point CPE

DONANIM ÖZELLİKLERİİşlemciQualcomm 750MHz CPU, MIPS 74KcBellek128 MB DDR2 RAM, 16 MB FlashArabirim1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset ButtonGüç KaynağıPassive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DCBoyutlar ( W X D X H )366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)Anten Kazancı23 dBiAnten Beamwidth9° (Azimuth)/7° (Elevation)Koruma15 KV ESD Protection
6 KV Lightning ProtectionMuhafazaMaterial: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof designKABLOSUZ ÖZELLİKLERİKablosuz StandartlarIEEE 802.11a/n/acKablosuz HızıUp to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)Frekans5.15~5.85 GHzİletim GücüMax. 27 dBm (Adjustable power by 1dBm)YAZILIM ÖZELLİKLERİAğ YapılandırmaWAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC BindingKablosuz KonfigürasyonlarSelectable Channel Width: 20/40/80MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/ Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
SSID Broadcast Enable/ Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
Long Range PtPYönetimDiscovery and Remote Management via Pharos Control application
HTTP/ HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH ServerSistem AraçlarıIndicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna AlignmentSistem Düzeyindeki OptimizasyonlarOptimized IGMP Snooping / Proxy for multicast applicationsPOE ADAPTÖR ÖZELLİKLERİBoyutlar (H X W X D)85.8×43.9×29.7 mmArayüzler1 AC Jack with Earth Ground
1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1× 10/100/1000 Mbps Shielded Ethernet Port (Data)ButonRemote Reset ButtonGüç Durum LEDleriGreenGiriş100-240VAC, 50/60HzÇıkış24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)Verimlilik>84.29%SertifikalarCE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-markDİĞERLERİSertifikaCE, FCC, RoHS, IP65, ICPaket İçeriğiOutdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation GuideSistem GereksinimleriMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.OrtamOperating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
