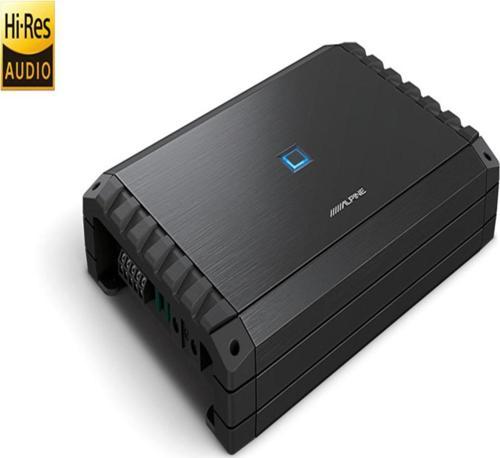

Alpine Özenhifi'Den S2-A55V

Features Install Terminal Layout: Two-sided
Included terminal covers
Screw terminals (for speaker and power cables)
General Class-D Amplification (Digital)
Hi-Res Audio Certified
Channel Design: 5/4/3 Channel
Side panel controls
Thermal Management Control
Top Mounted LED Power/Status Indicator
Speaker Level Input
3 turn-on modes (DC HI, Remote HI, Remote LO)
Input Channel Selector Switch for Subwoofer
Crossover: Variable Low-pass Filter (LPF) and High-Pass Filter (HPF),
Adjustable Gain Control
Bass EQ
Remote Bass Control ( RUX-KNOB2) Ready (for channel 5 only)
Specifications RMS Power Ratings Per Channel into 2 Ohms, 14.4V (?1%THD+N): 4 x 60W + 1 x 300W
Per Channel into 4 Ohms, 14.4V (?1%THD+N): 4 x 40W + 1 x 200W
Bridged, 4 Ohms, 14.4V: 2 x 120W
Sound Tuning Crossover: Variable HPF/LPF: 50-400Hz (-12dB/oct / -24dB/oct for subwoofer)
Bass EQ (50Hz bass boost up to +12dB)
General Power Requirements: 14.4 V.DC (9 – 16 V allowable)
Input Sensitivity (RCA Input): Hi: 0.5V – 10V / Low: 0.2V – 4.0V
High Level Input with automatic power on
Frequency Response: 10Hz – 40kHz
THD+N (@ 10W into 4 Ohms): 100 (speaker channels) / > 750 (subwoofer channel)
Weight: 3.2kg
Dimensions Heat Sink (WxHxD) mm: 302 x 57 x 210
